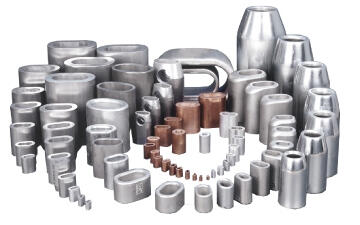

Ferrules and Sleeves
We offer a comprehensive range of high-quality wire rope termination solutions, including copper, aluminum, stainless steel, and steel ferrules, as well as swage sockets and other fittings. All components are manufactured under ISO-certified systems with precision machining and strict quality control, ensuring excellent performance, corrosion resistance, and safety.
Designed for secure, permanent terminations, our swage sleeve systems provide maximum grip strength and reliability across applications from light cables to heavy lifting slings.
As a one-stop manufacturer, we integrate our own fittings, swaging equipment, and testing systems to deliver complete, globally trusted solutions for wire rope assemblies.
- Flemish Eye Steel Sleeves : 1/4" ~ 6 "
- Aluminum Ferrules : #1 ~ #S128
- Conical (Form C) aluminum ferrules
- Duplex oval steel sleeves
- Steel swage buttons
- Stainless steel one-piece sleeves
- Stainless steel two-piece sleeves
- Copper ferrules
- Forged swage sockets : open and closed type
- Swage thread stud ends

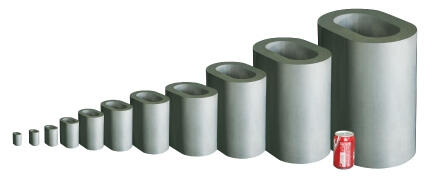

EN 13411-3 Aluminum Ferrules
▼ Manufactured as per EN13411-3 (DIN 3093) standard from the size of #2.5 to #60.
▼ Innovators for "S"-type Aluminum ferrules from the size of #S62 to #S128.
▼ All WIROP® aluminum ferrules are made of seamless aluminum. Random samples have been passed 75,000 cycles fatigue test, strictly follow the material composition and mechanical property requirements of EN 13411-3 (DIN 3093) standard.
▼ WIROP® "S"-type Aluminum ferrules have been proven the high quality by sample testing via TAF lab, third party and end users. Gaylin International Pte Ltd. has done the testing on 21 Oct. 2010 and the testing result has been qualified.

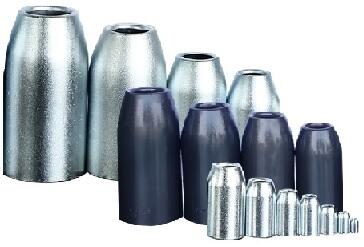

EN 13411-3 Form C Aluminum Ferrules
▼ The inspection hole guarantees control of the correct inserted length of wire rope before and after swaging.
▼ Recommended to be swaged with conical dies for EN13411-3 Form C (DIN 3093) aluminum ferrules.
▼ Larger ferrule sizes and ferrules without inspection hole are available upon request.
Flemish Eye Steel Sleeves
▼ Crystal inspection on carbon steel sample.
▼ Exact In-house forging, heat treatment, and sand blasting process.
▼ Test dynamic endurance on Flemish eye steel sleeves sample 75,000 times and record maximum breaking load. Strictly follow EN 13411-3 standard.
▼ Batch code on each steel sleeve for traceability.
▼ Sustained improvement on manufacturing sleeves. Galvanized and self colored sleeves are available.
Duplex Oval Steel Sleeves
▼ Non-tapered.
▼ For turn-back loop.
▼ Specially processed low carbon steel.
▼ Note : Duplex oval steel sleeves are recommended for using with 6x19 or 6x37, IPS or XIP (EIP), FC or IWRC wire rope.
Steel Swage Buttons
▼ Specially processed low carbon steel. Recommended use with 6x19, 6x25, 6x29, 6x37 IPS or XIP (EIP), FC or IWRC wire rope.
Stainless Steel One-piece Sleeves
▼ The quickest and simplest solution to form strong swaged turn-back eyes in wire rope.
Stainless Steel Two-piece Sleeves
▼ The quickest and simplest solution to form strong swaged turn-back eyes in wire rope.
Forged Open Swage Sockets
▼ Swage sockets are forged from special bar, quality carbon steel with its hardness controlled by spheroidized finest annealing.
▼ Sockets have an efficiency rating of 100% based on the catalog strength of wire rope if sockets are under properly application.
▼ Swage Sockets are recommended for use with 6x19, 6x37, IPS or EIP, EEIP, RRL, or IWRC wire rope.
▼ Destructive testing or Proof Load testing the terminations is recommended before using any swage sockets with any other type of lay or construction or grade of wire rope. All should be documented to prove the adequacy of assembly in accordance with ASME (ANSI) B30.9 standard.
